Sennheiser XSW2-Cl1 Wireless Instrument System

Sennheiser XSW2-Cl1 Wireless Instrument System Overview :

Amplify your tunes. Flexible, rugged, all-in-one wireless system for guitar and bass.

Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

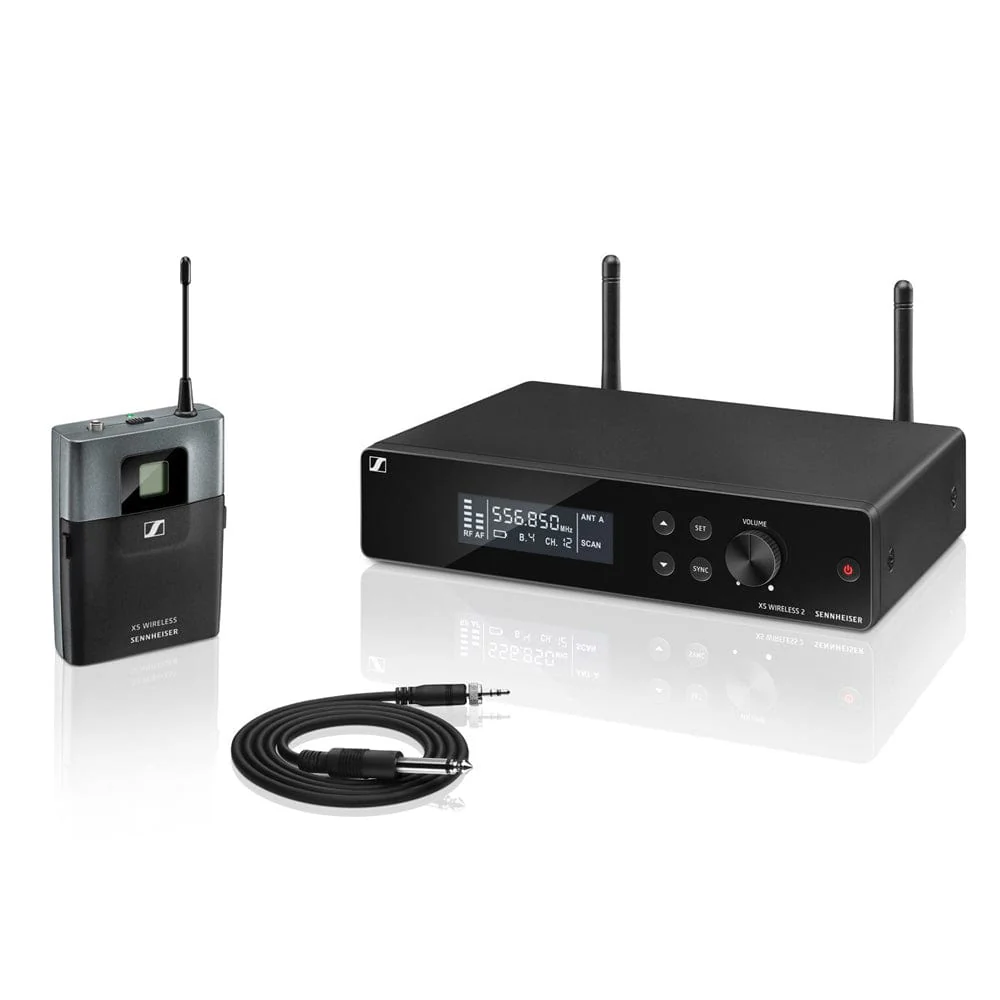

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.

Features :

• Robust instrument cable and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Contents included :

• 1 receiver EM-XSW 2
• 1 bodypack transmitter SK-XSW

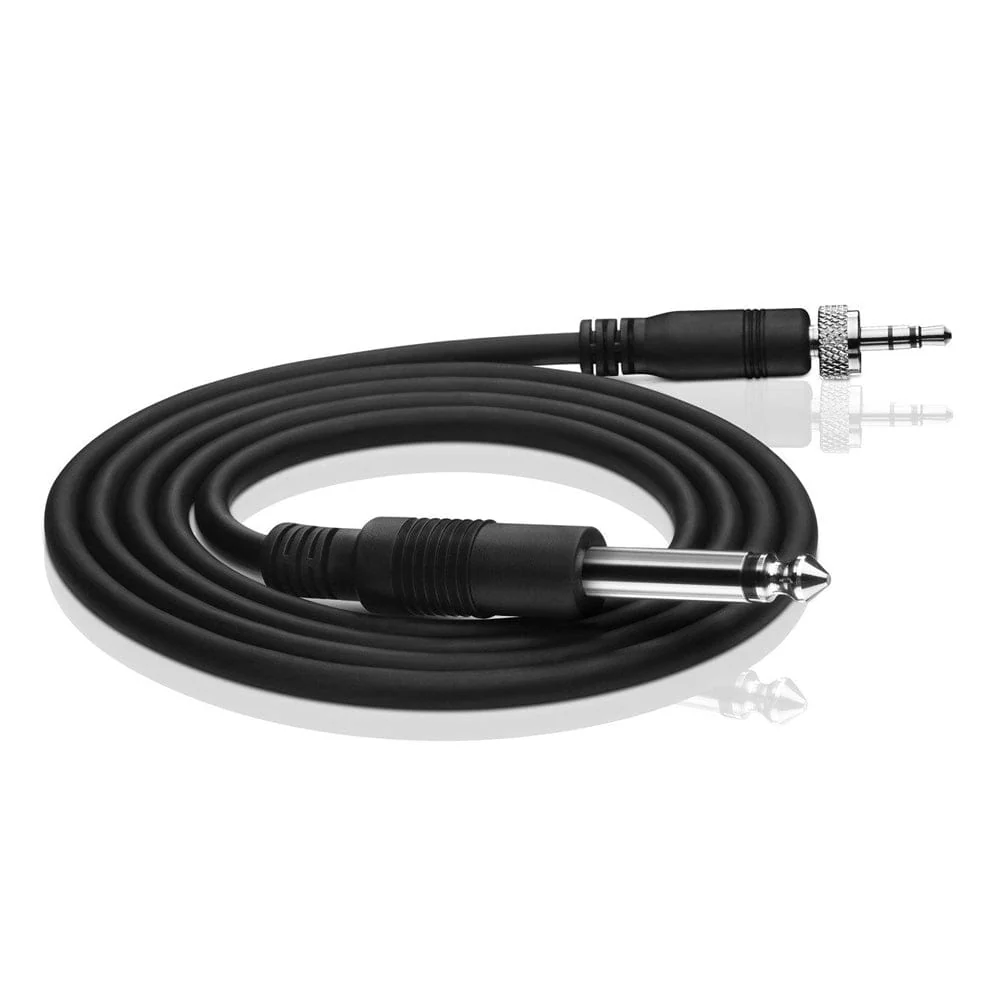

• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• user manual

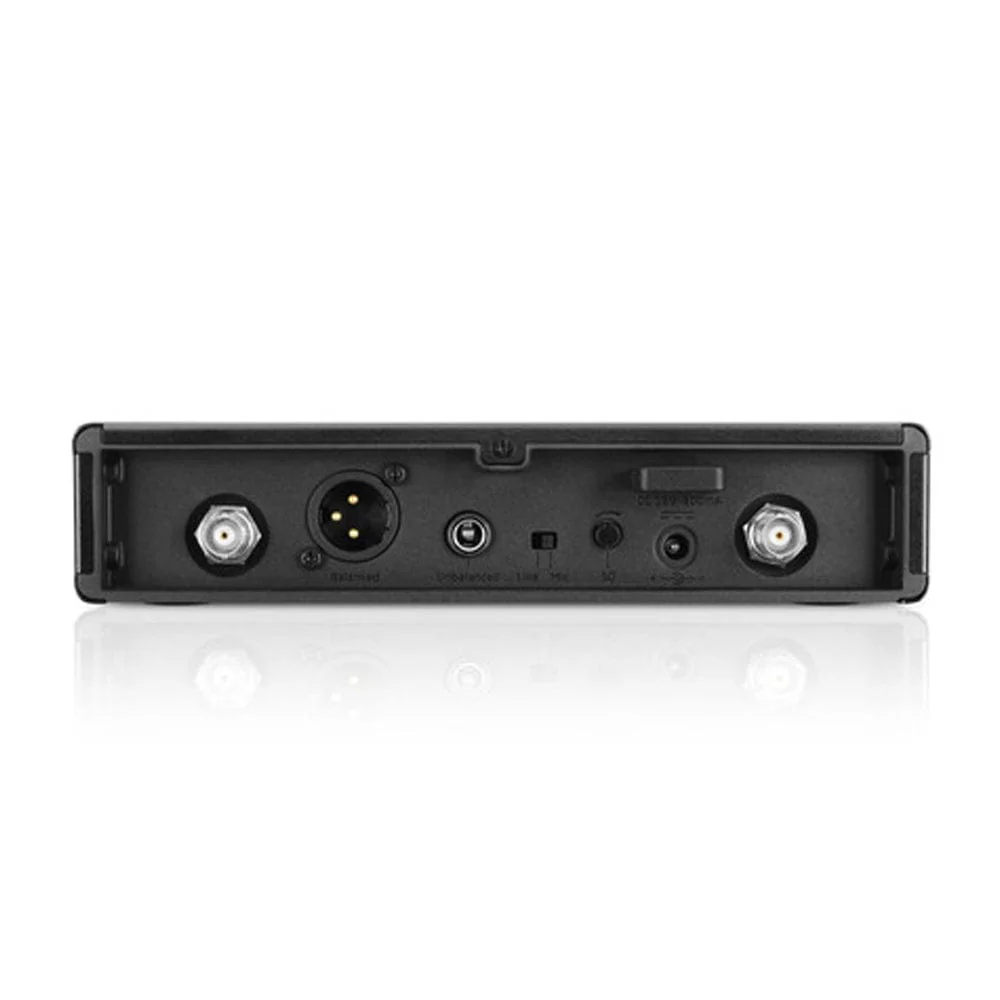

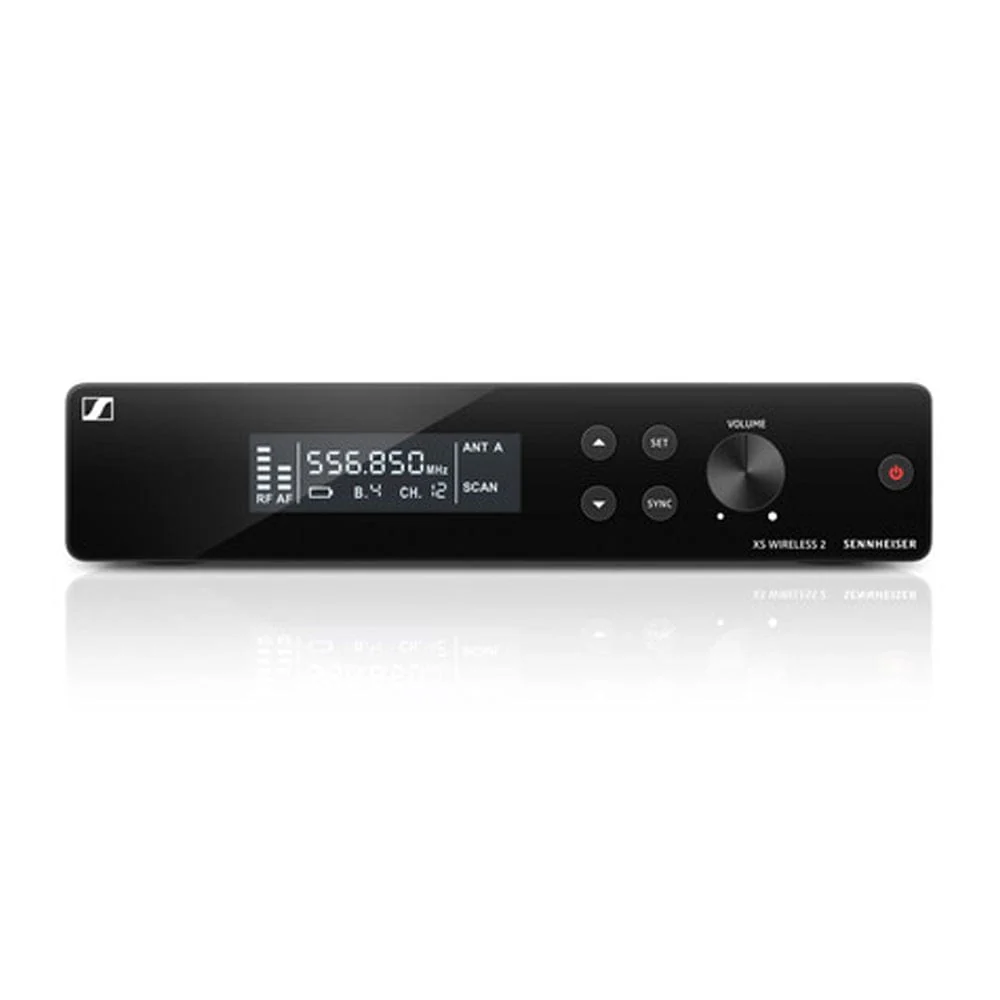

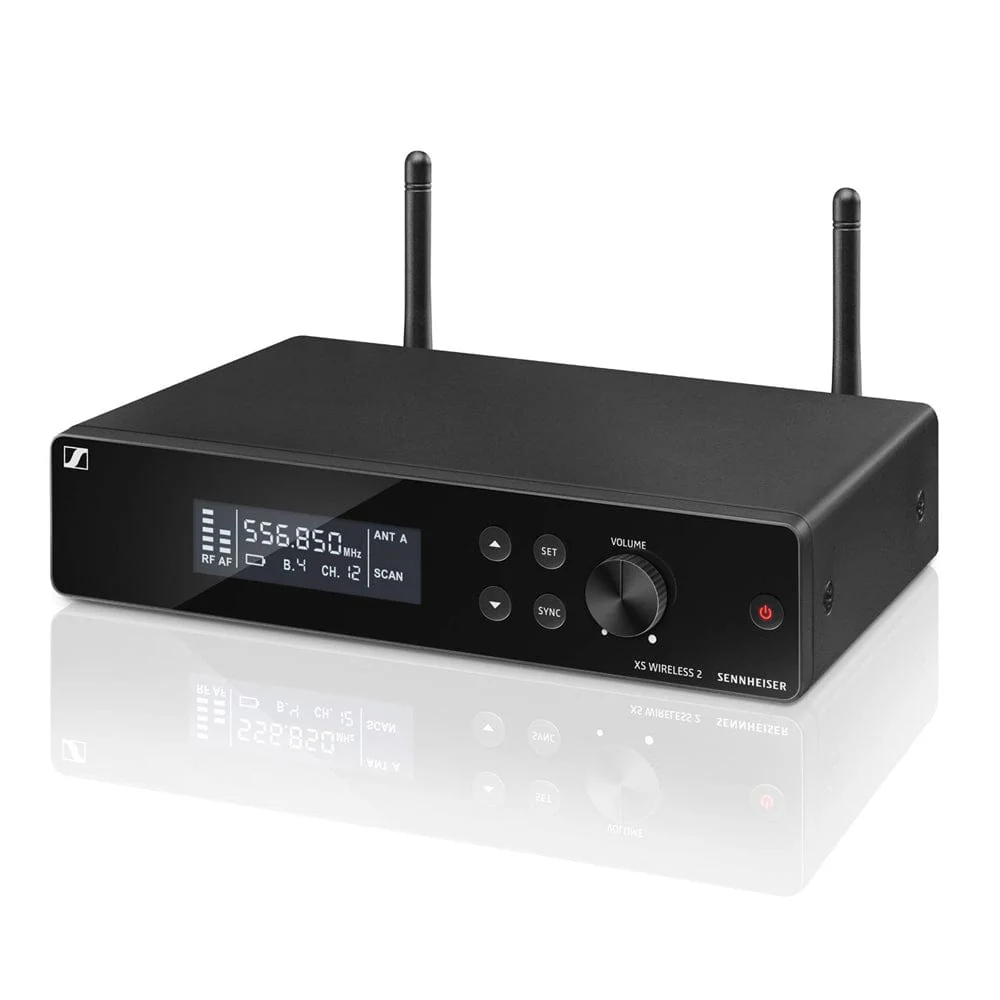

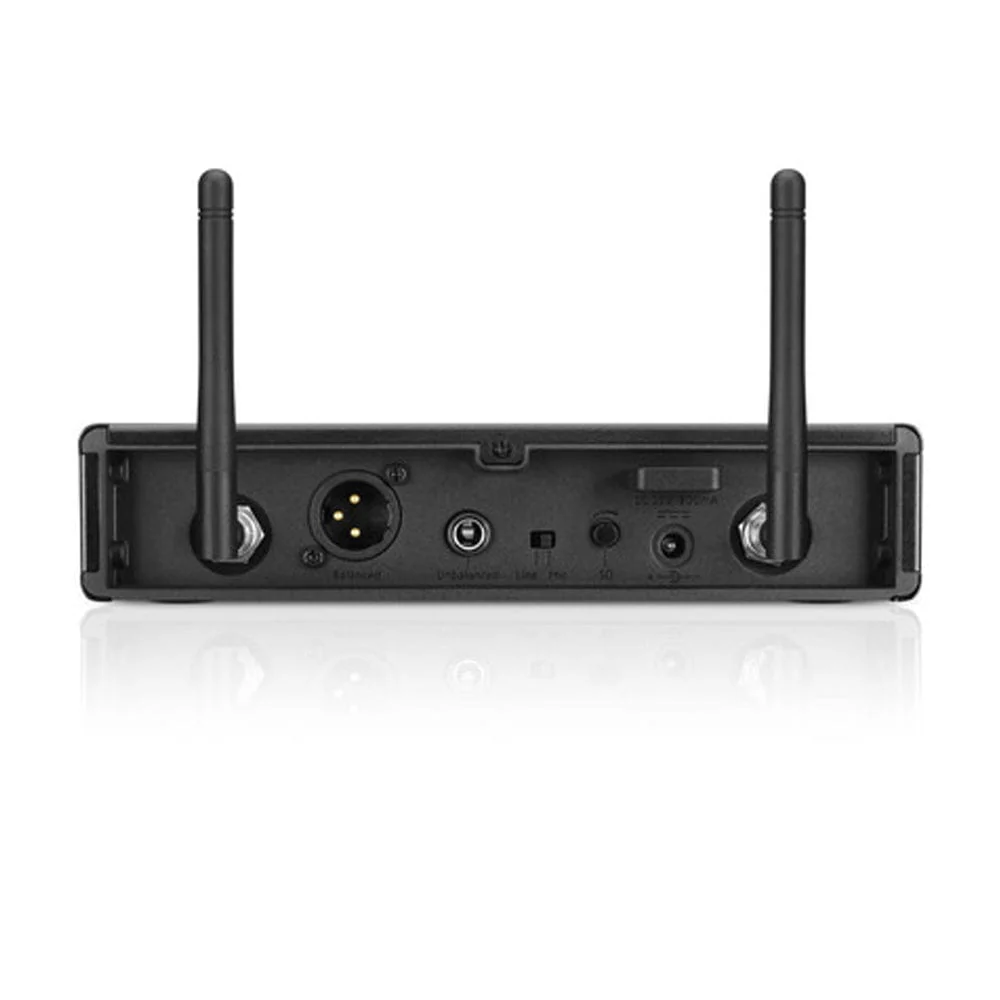

Receivers

• Dimensions approx : 200 x 42 x 127 mm
• Weight approx :  680g
• Power supply : 12 V DC nom. / 300 mA
• Housing metal
• AF frequency response : 50 to 16,000 Hz (–3 dB)

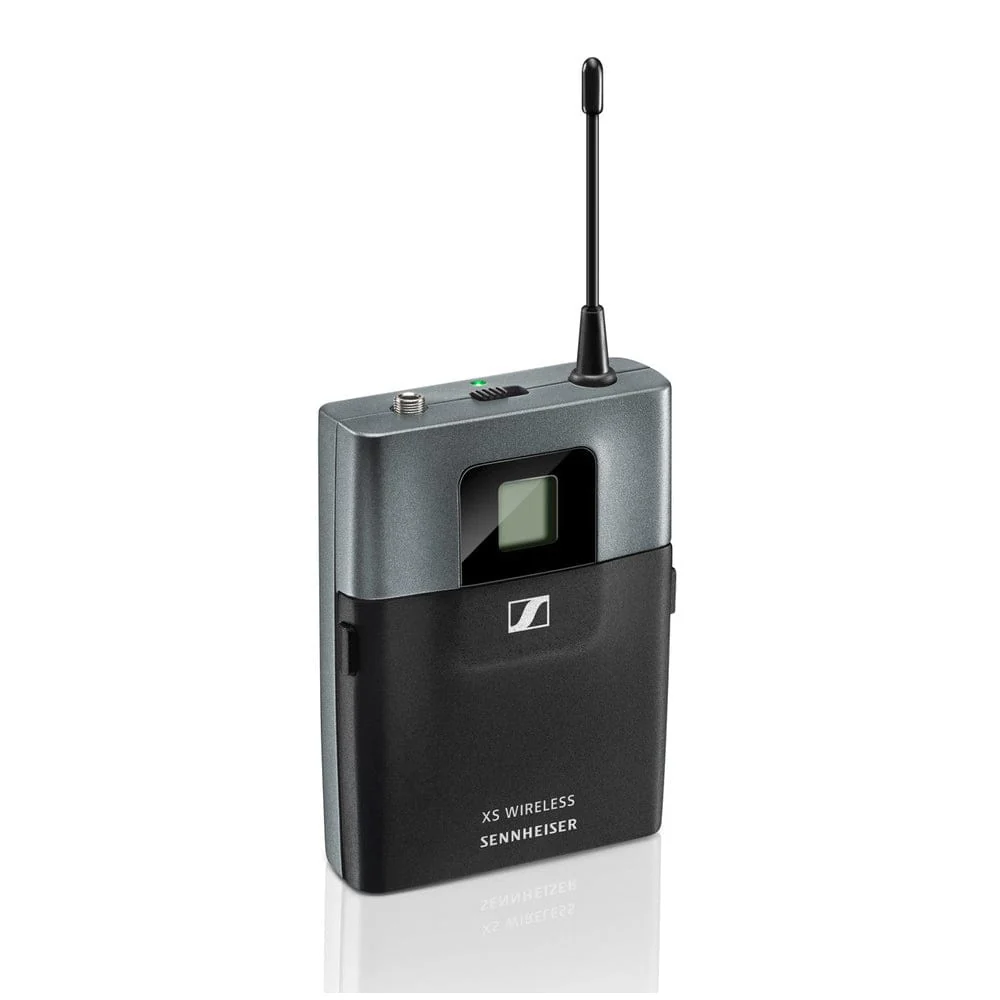

Transmitter

• Dimensions approx :71 x 96 x 28 mm
• Weight approx : 95g
• Operating time approx : 10 hrs
• Power supply : 2 AA size batteries, 1.5 V
• Housing robust : ABS
• AF frequency response ：50 - 16000Hz

Specifications :

• Frequency response : 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion ≤ 0.9%
• Signal-to-noise ratio : ≥ 103 dBA
• RF output power : 10 mW
• Switching bandwidth up to 24 MHz
• Modulation : wideband  FM
• Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Diversity reception : True Diversity
• Frequency : 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range
• A: 548-572 MHz
• C: 766-790 MHz
• Sensitivity : < 3 μV at 52 dB(A)rms S/N
• Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)"
• Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range : 40 dB, adjustable in 5-dB steps
• Line / Mic level 20 dB, switchable
• Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle : double superheterodyne

Made in Germany
