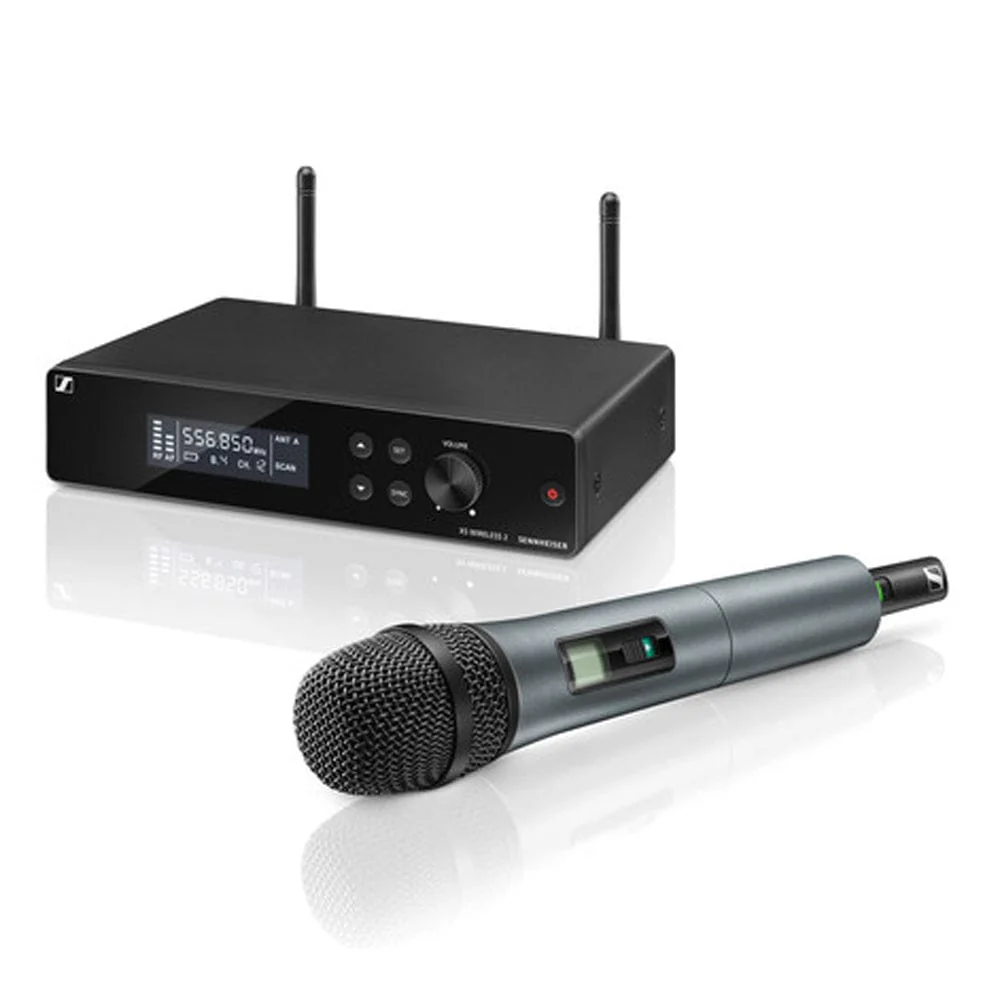

Sennheiser XSW2-835 Wireless Vocal Microphone System

Sennheiser XSW2-835 Wireless Vocal Microphone System Overview :

Raise Your Voice. Flexible, rugged, all-in-one wireless system for singers and presenters.

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Features :

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via
• remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Contents included :

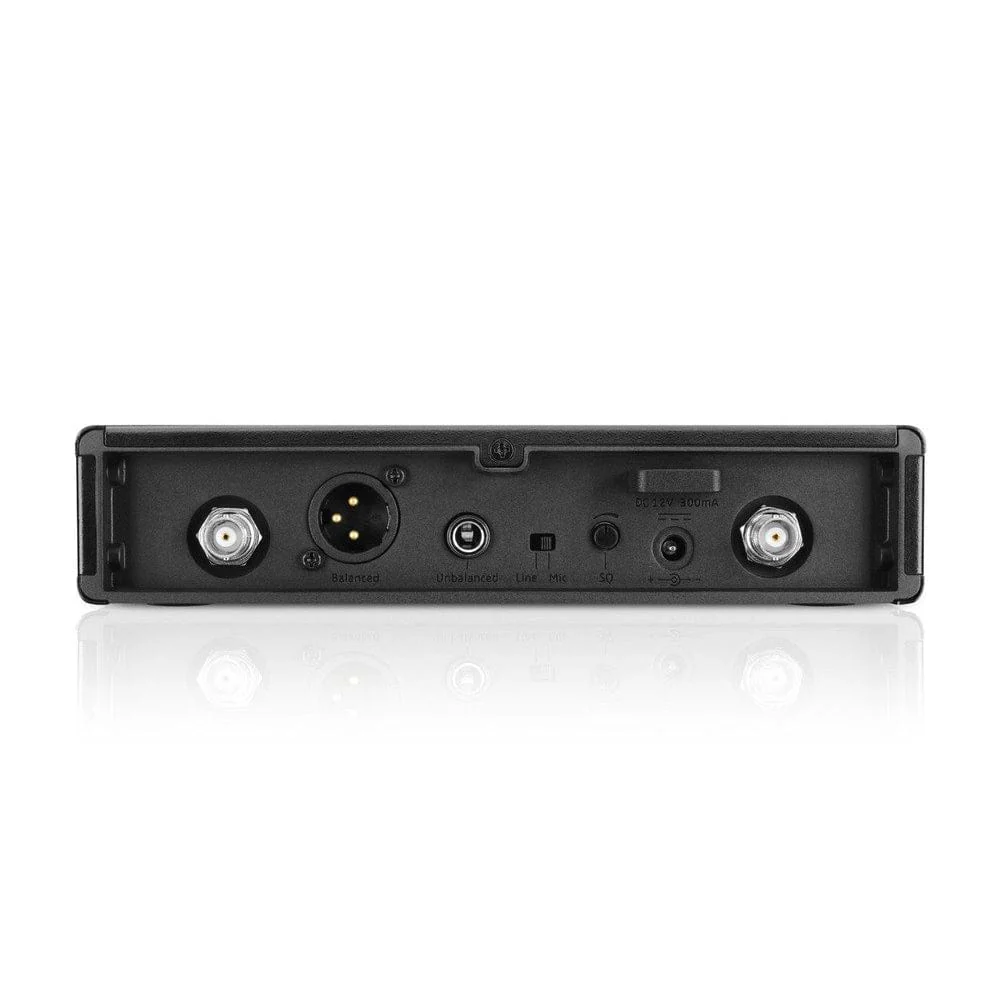

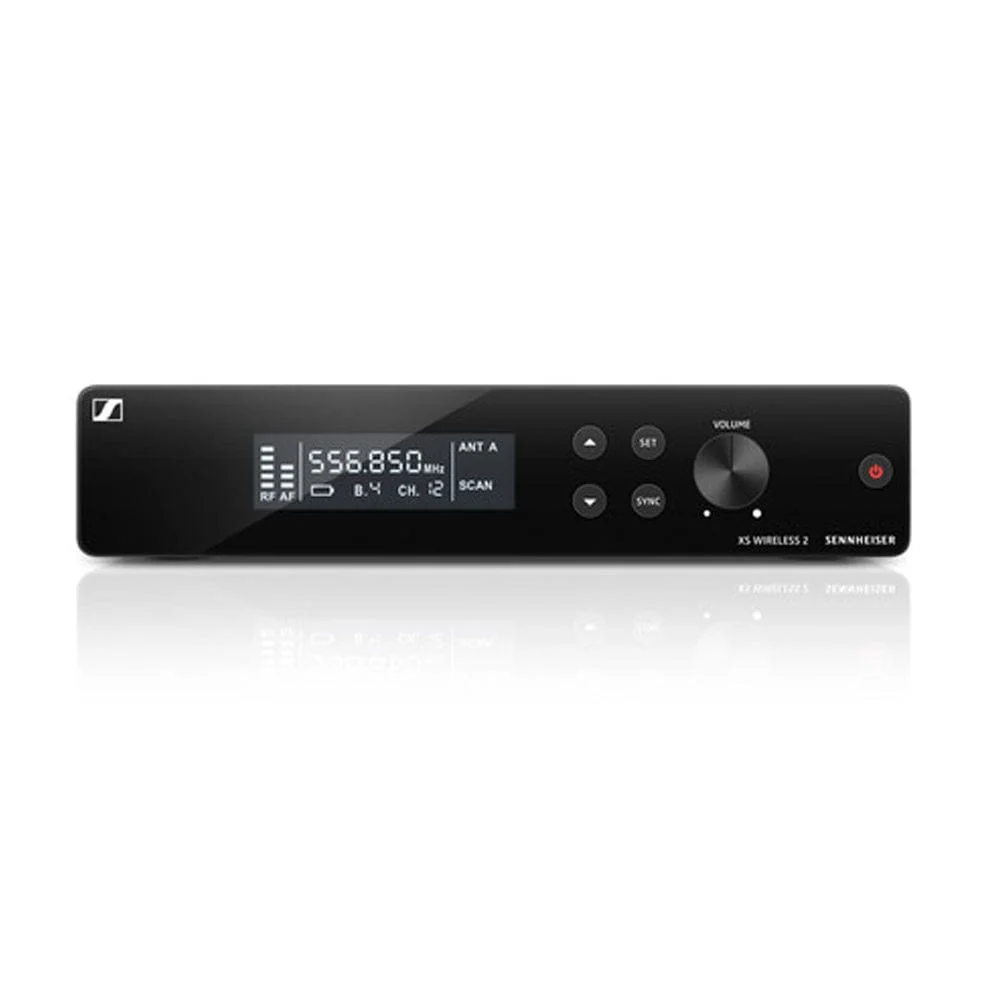

• 1 receiver EM-XSW 2

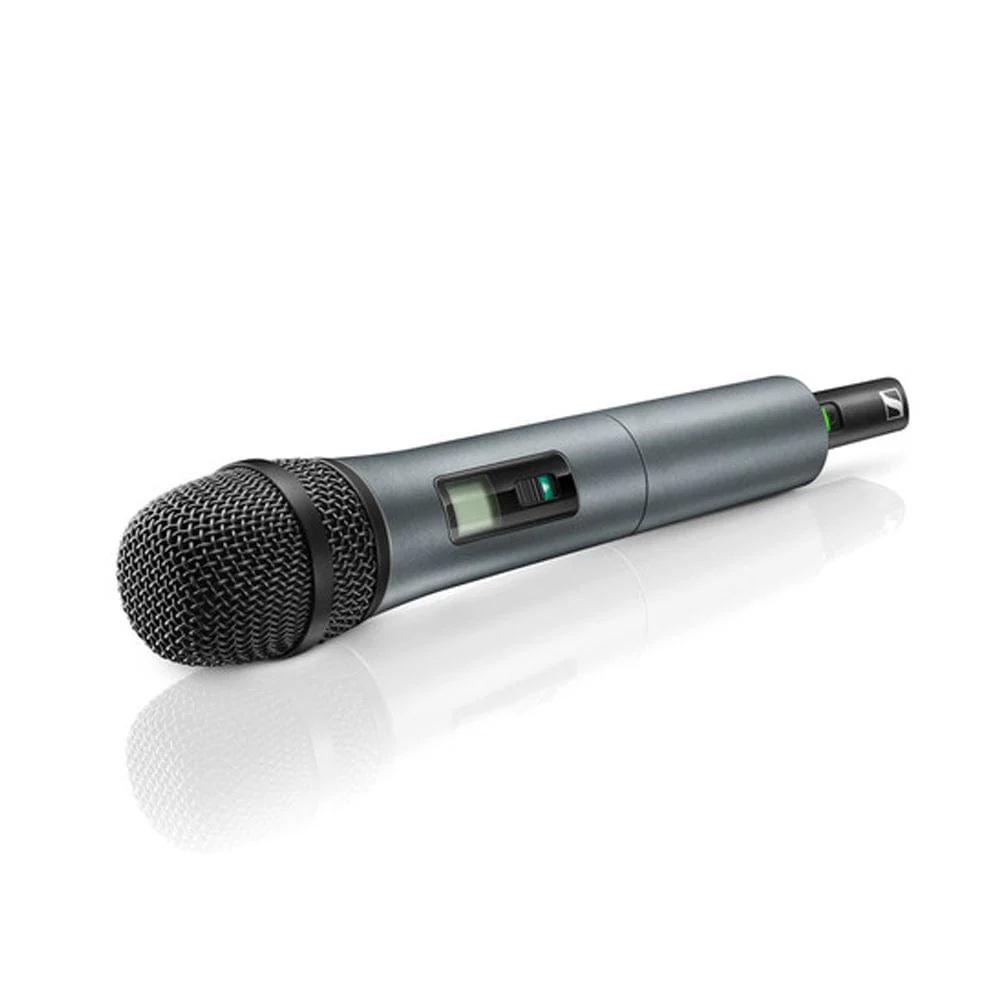

• 1 handheld transmitter SKM 835-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• user manual

Receivers

• Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
• Weight approx. 680g
• Power supply 12 V DC nom. / 300 mA
• Housing Metal, microphone: robust ABS
• AF frequency response 50 to 16,000 Hz (–3 dB)

Microphone dynamic

• Frequency response : 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion ≤ 0.9%
• Pick-up pattern cardioid
• Signal-to-noise ratio : ≥ 103 dBA
• RF output power : 10 mW
• Switching bandwidth : up to 24 MHz
• Operating time approx : 10 hrs
• Modulation : wideband FM
• Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu
• Frequency : 8 frequency banks, each with up to 12 factory-preset channels

Frequency range :

• A: 548-572 MHz
• C: 766-790 MHz

Specifications :

• Sensitivity : < 3 μV at 52 dB(A)rms S/N
• Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
• Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Line : 20 dB, switchable
• Input sensitivity : 1.5 mV / Pa
• Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range : 40 dB, adjustable in 5-dB steps
• Temperature Range operation : 0°C to +40°C
• storage : –20°C to +70°C
• Receiver Principle : double superheterodyne
• Diversity principle : True Diversity

Microphone

• Weight approx : 245g
• Power supply : 2 AA size batteries, 1.5 V
• AF frequency response : 80-14,000 Hz

Made in Germany
