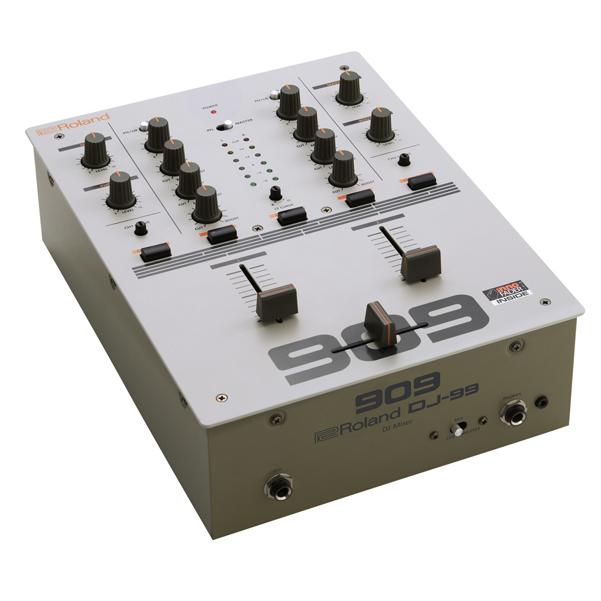

Roland DJ-99 2-Channel DJ Mixer

Roland DJ-99 2-Channel DJ Mixer Overview:

2-Channel 909 Special Edition Mixer

Features:

• Pro-grade mini innoFADER crossfader
• Dedicated DVS input/output
• 3-band equalizer for each input

Specifications:

• Nominal Input Level (OUTPUT MASTER 0 dBu):
• CH1, CH2 CD (L, R): -13 dBu
• CH1, CH2 LN (L, R): -17 dBu
• CH1, CH2 PH (L, R): -61 dBu
• CH1, CH2 DVS RETURN (L, R): -13 dBu
• MIC IN: -40 dBu

Maximum Input Level:

• CH1, CH2 CD (L, R): 6 Vrms
• CH1, CH2 LN (L, R): 6 Vrms
• CH1, CH2 PH (L, R): 0.04 Vrms
• CH1, CH2 DVS RETURN (L, R): 6 Vrms
• MIC IN: 0.6 Vrms

• Maximum Output Level (1 kHz, typ.):
• OUTPUT MASTER (L, R): +15 dBu
• OUTPUT BOOTH (L, R): +15 dBu
• PHONES: 31 mW

• Recommended Load Impedance: PHONES: 32 ohms

Frequency Response:

• CH1, CH2 CD, LN, DVS RETURN: 20 Hz–20 kHz (+1/-2 dB)
• MIC IN: 20 Hz–20 kHz (+1/-3 dB)

Noise Level:

• CH1, CH2 LN (L, R)–>OUTPUT MASTER: 0.6 mVrms or less
• CH1, CH2 PH (L, R)–>OUTPUT MASTER: 6 mVrms or less
• * TRIM level: center, 1 k ohms terminated, MASTER level: max, IHF-A, typ.

• Distortion:
• CH1, CH2 CD (L, R): 0.2 % or less
• CH1, CH2 LN (L, R): 0.2 % or less

Channel EQ (typ.):

• HI: 10 kHz +12 dB– -12 dB
• MID: 980 Hz +12 dB– -28 dB
• LOW: 100 Hz +12 dB– -28 dB

Controller:

• CH1, CH2 Input selectors
• CH1, CH2 MIC level knobs
• CH1, CH2 TRIM level knobs
• CH1, CH2 Channel EQ knobs HI
• CH1, CH2 Channel EQ knobs MID
• CH1, CH2 Channel EQ knobs LOW
• CH1, CH2 Channel Fader curve adjustment knobs
• CH1, CH2 Channel Fader reverse switches
• CH1, CH2 CUE buttons
• CH1, CH2 Channel Faders
• CH1, CH2 LN/PH selectors
• Crossfader
• PFL/MASTER selector
• PHONES level knob
• MASTER level knob
• BOOTH level knob
• Crossfader curve adjustment knob
• Crossfader reverse switch
• Headphones Monitoring selecto

Indicator:

• POWER indicator
• PFL/MASTER level meter
• CH1, CH2 Channel Fader reverse indicators
• CH1, CH2 CUE indicators
• Crossfader reverse indicator

Connectors:

• MIC input jack: 1/4-inch phone type
• PHONES output jacks: Stereo 1/4-inch phone type, Stereo miniature phone type
• CH1, CH2 CD input jacks (L, R): RCA phono type
• CH1, CH2 LN/PH input jacks (L, R): RCA phono type
• CH1, CH2 DVS SEND jacks (L, R): RCA phono type
• CH1, CH2 DVS RETURN jacks (L, R): RCA phono type
• CH1, CH2 GND terminals
• MASTER output jacks (L, R): 1/4-inch phone type
• BOOTH output jacks (L, R): RCA phono type
• POWER switch POWER connector Fuse holder

• Power Consumption: 22 W
• Fuse Rating: T315mAL250V (5 ⌀ x 20 mm)

• Accessories: Owner's manual, Power cord, Extra fader knob: 3 pcs

• Dimensions (W X D X H): 8-7/8 X 12-1/16 X 34-1/8 inches (224 X 306 X 104 mm)
• Weight: 3.3 kg (17 lbs 5 oz)

Made in China
