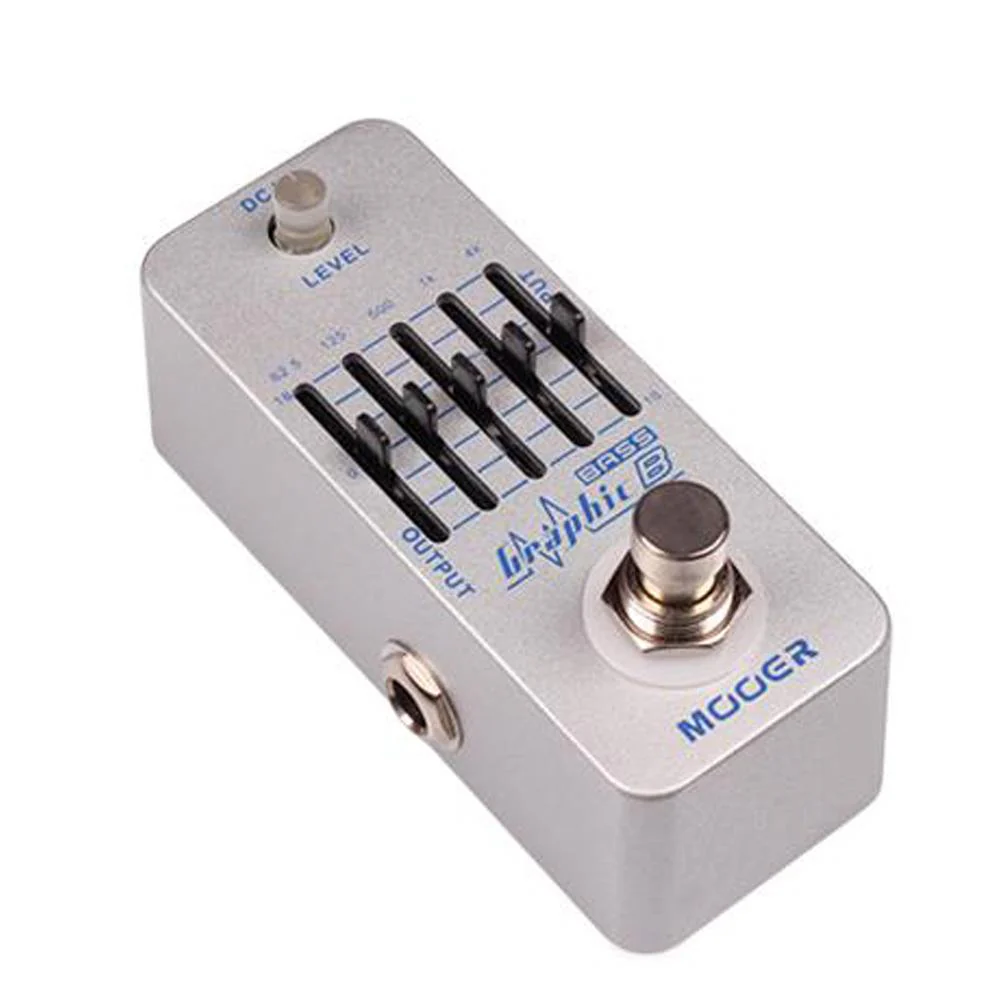

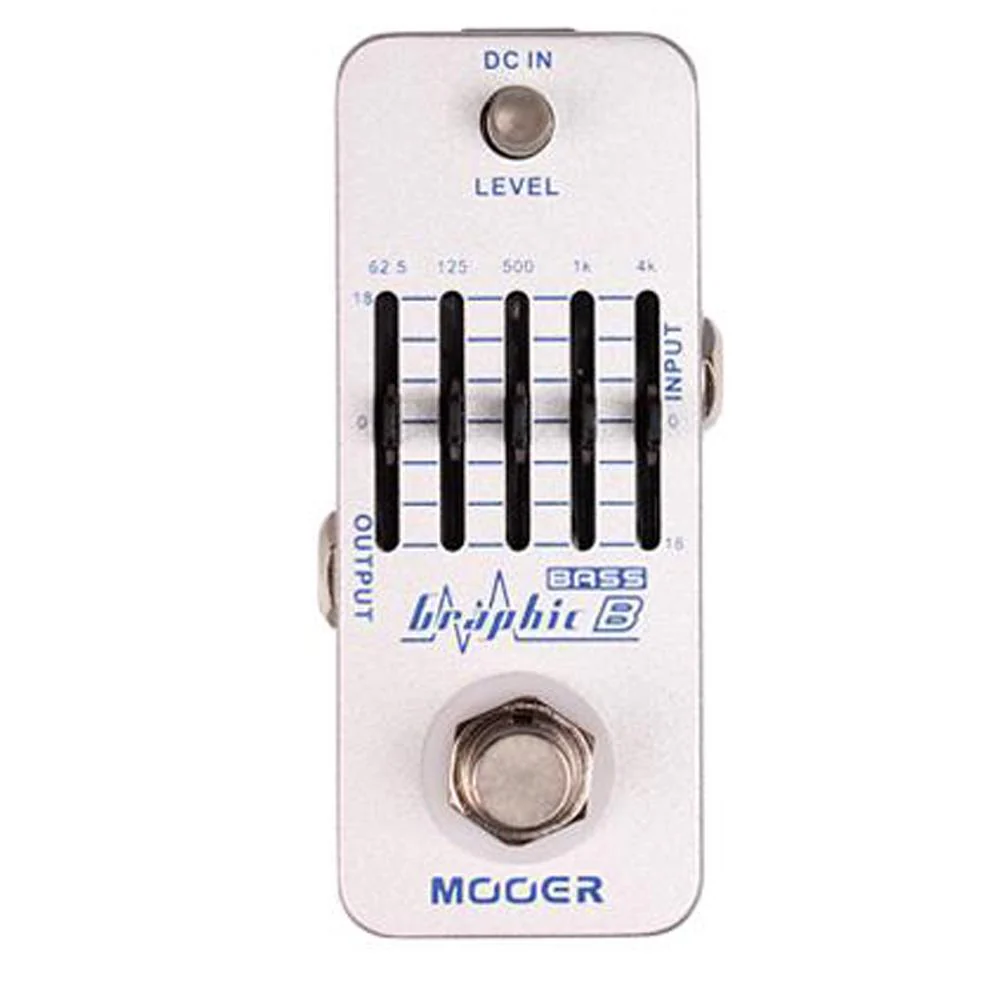

Mooer GraphicB Bass Equalizer Effects Pedal

Mooer GraphicB Bass Equalizer Effects Pedal Overview :

Features :

• Smallest Bass graphic equalizer pedal in the world
• 5-Band Graphic EQ with master level control
• Frequency Centers : 62.5Hz, 125Hz, 500Hz, 1kHz, 4kHz
• ±18dB adjustable gain range per band
• Full metal shell
• Very small and exquisite
• True bypass

Specifications :

• Input : 1/4” monaural jack (impedance: 470k Ohms)
• Output : 1/4” monaural jack (impedance: 1k Ohms)
• Power Requirements : AC adapter 9V DC (center minus plug)
• Current Draw : mA
• Dimensions : 93.5mm (D) × 42mm (W) × 52mm (H)
• Weight : 160g

Made in China
