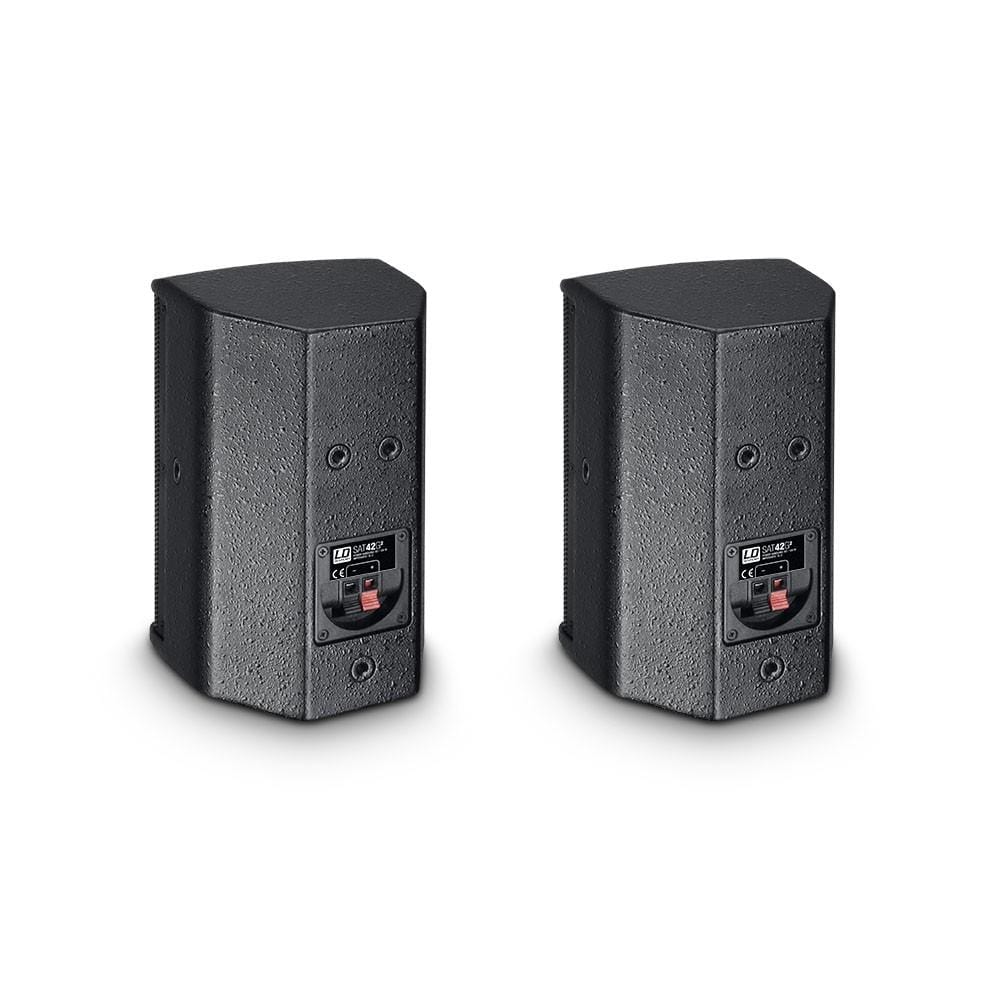

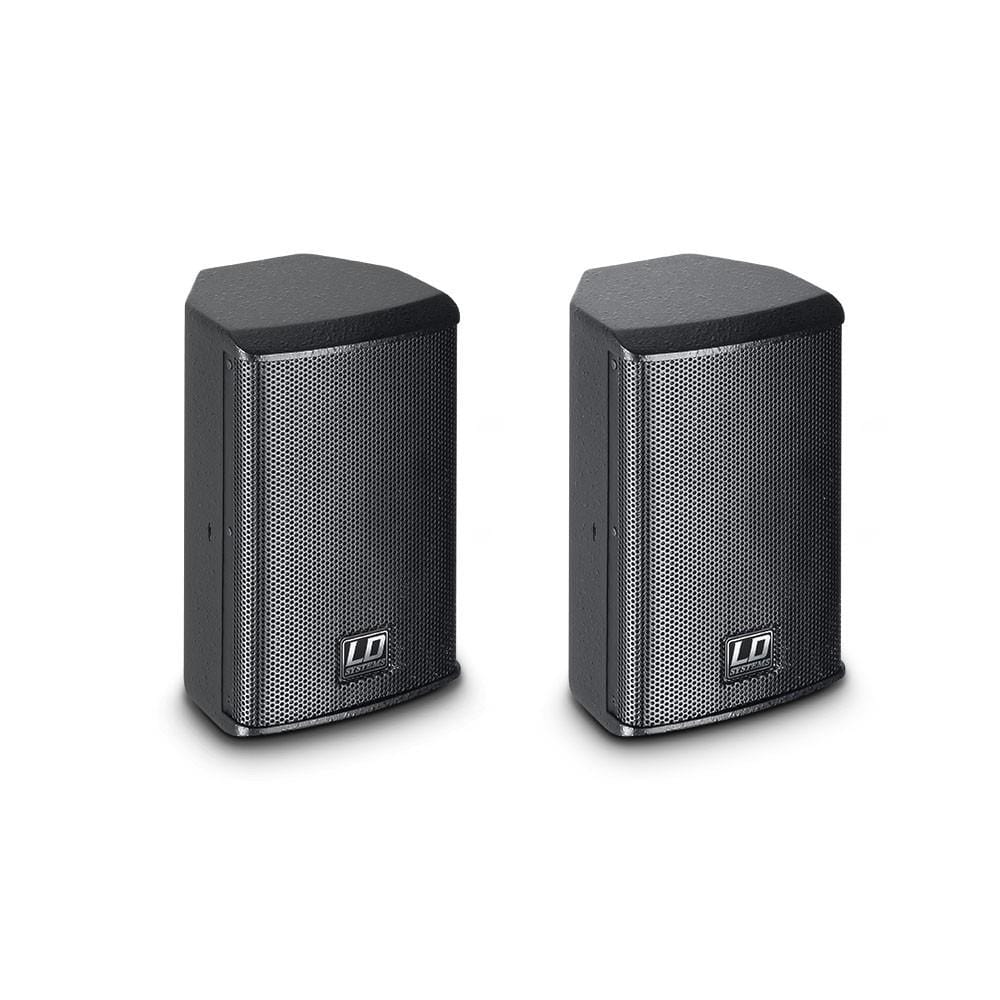

LD Systems SAT42G2 4" Installation Passive Wall Mounted Speaker Pair
LD Systems SAT42G2 4" Installation Passive Wall Mounted Speaker Pair Overview:
The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.
The cabinet with a rugged textured coating is made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Specifications
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid driver dimensions: 4"
- Woofer size: 101 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- HF driver dimensions: 1"
- HF driver size: 25 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Dispersion (H x V): 60 x 60
- Load rating (RMS): 60 W
- Frequency response: 75 - 20000 Hz
- SPL (1W/1m): 85 dB
- Max. SPL: 103 dB
- Impedance: 16 Ohm(s)
- Protection circuits: HF Driver
- Loudspeaker inputs: 1
- Speaker input connections: Clamp connector
- Speakers per amplifier channel (DSP44/45K): 8
- Cabinet material: 12 mm MDF
- Cabinet surface: Texture paint
- Cabinet colour: Black
- Cabinet construction: Closed
- Width: 140 mm
- Height: 230 mm
- Depth: 125 mm
- Weight: 5 kg
Made in China
